FS A002

3D Plantar Scanner

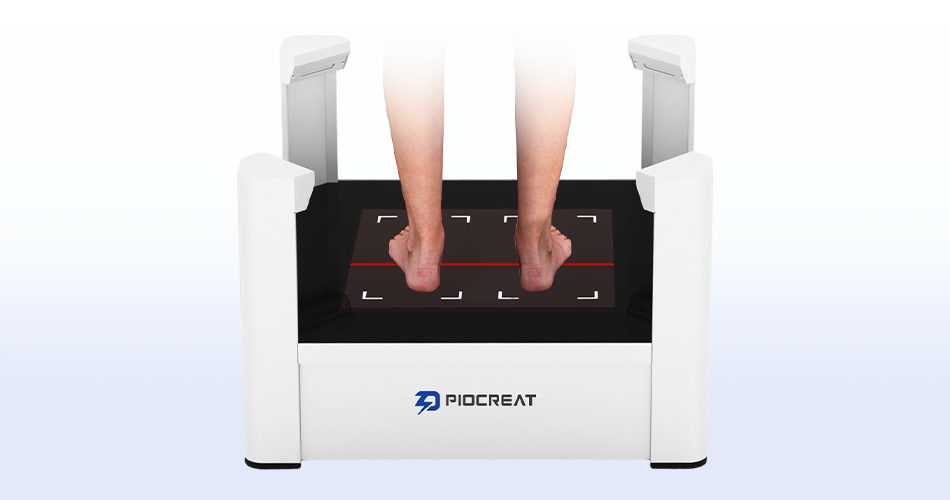

PioCreat 3D Plantar Scanner uses non-contact laser to scan human plantar in 10 seconds, measuring 20+ parameters. It supports weight-bearing variations and is used for insoles, podiatry, and more, across medical, sports, and retail sectors.

Key Features

Fast scanning speed

Avoid the problem of inaccurate foot movement measurement caused by children's hyperactivity.

High accuracy

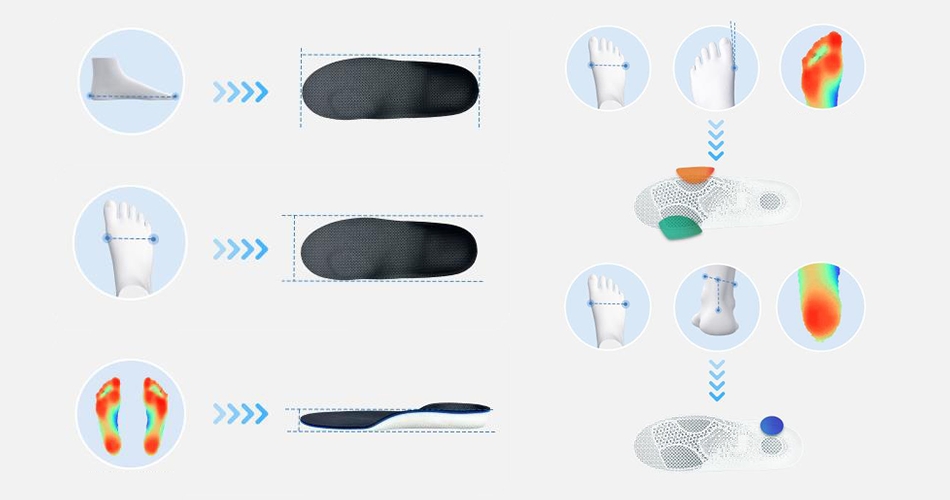

Realize the judgment of index parameters such as arch, thumb,heel, footlength,foot width,and internal and external eight too quickly generate a test report.

intelligent data reporting

Export the plantar feature data, intuitively understand the footand gait health problems, and design through the design software.

Easy to carry

The flight case is packaged in one package,and it can be loaded andtaken away.

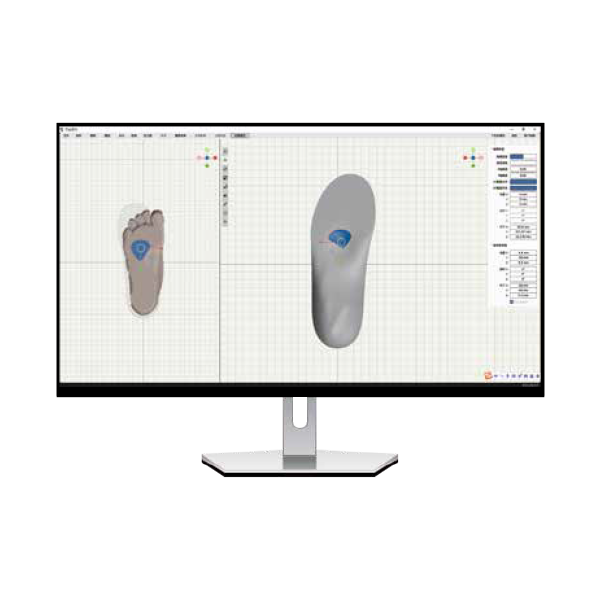

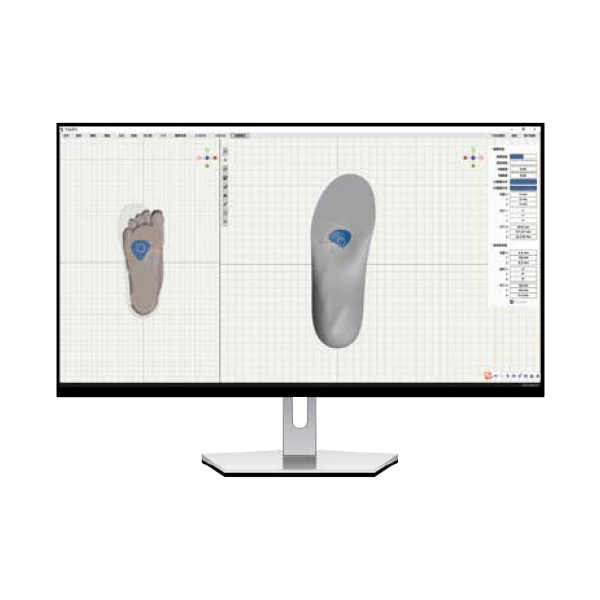

IDEAL-INTELLIGENT INSOLE DESIGN SYSTEM

IDEAL-INTELLIGENT INSOLE DESIGN SYSTEM

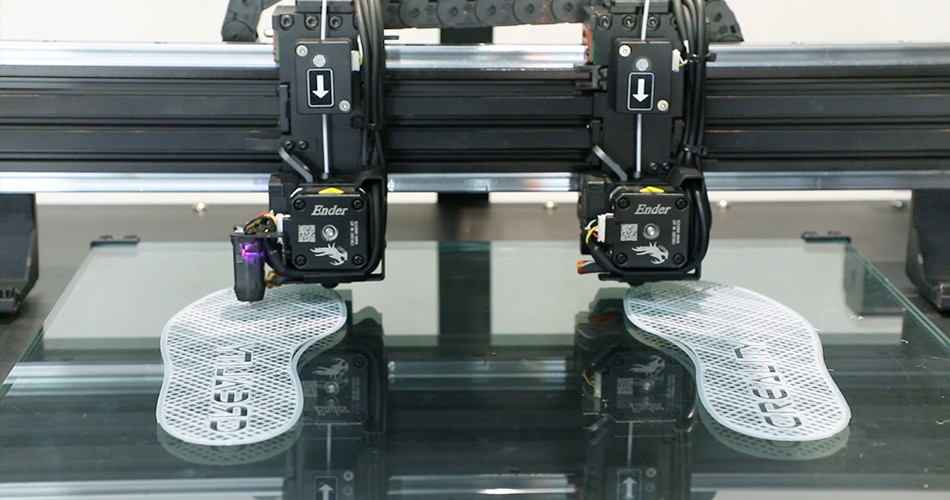

  • Based on 3D printing process research and development,fully in line with the characteristics of 3D printing technology.
  • One-click export can be printed, no need for secondary mold design.

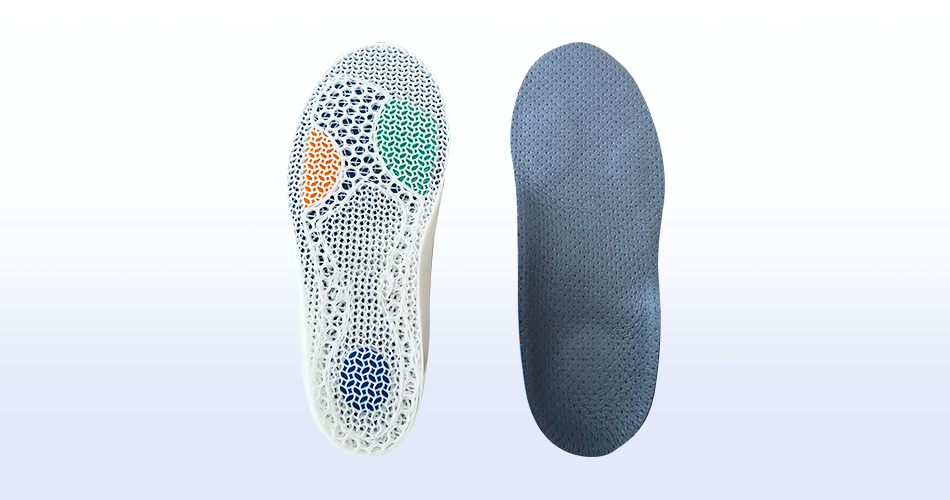

  • Multi-design modules can meet the design requirements of complex structural insoles.
  • Intelligent and simple operation, quickly complete a pair of insole design within 5 minutes.
FS A002 3D Plantar Scanner
Scanning light sourceLaser Class 2M,no harm to human body and eyes
Scan range(mm)300×170×50mm
Scanning error(mm)+0.5mm
Scan time(s)<5-10s(one foot)
output information3D data(STL format) and more than 20 plantar parameters, with analysis of arch, heel, and thumb varus)
Warranty12 months manufacturer's warranty
Technical Support:Unlimited lifetime technical support

Application Areas
