Overview

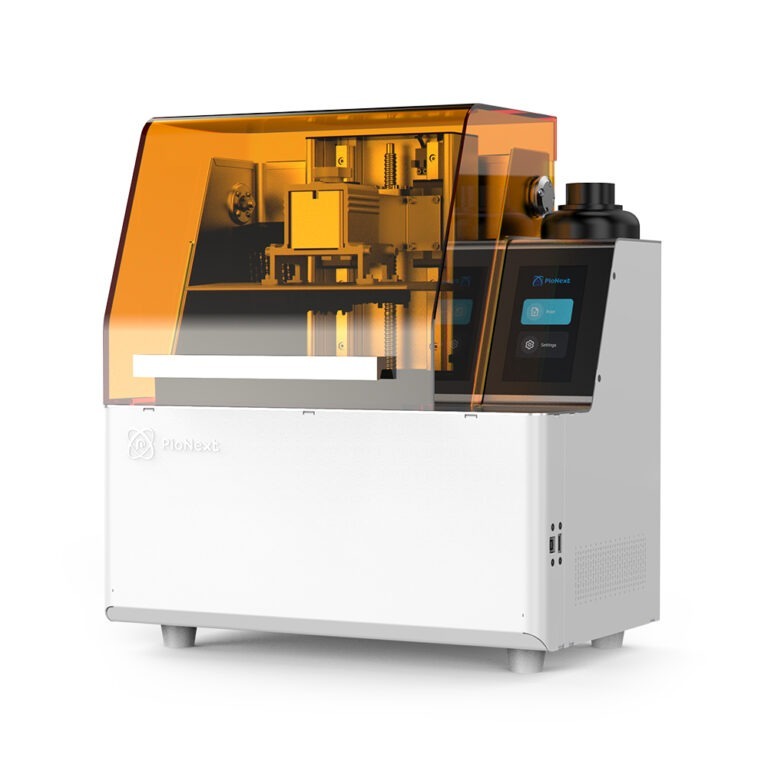

The PioNext DJ89 PLUS from Piocreat is a LCD printer aimed at the dental industry, and as you can see in the image below, it is clear that this is an industrial-grade machine.
Featuring a 228 × 128 × 100 mm build envelope, it is ideally sized for orthodontic printing tasks that can be performed chairside.
One of the standout features of the PioNext DJ89 PLUS is its high-resolution capabilities, capable of rendering fine details and smooth surfaces with exceptional clarity. This level of precision is crucial in dentistry, where the accurate replication of anatomical features is paramount for successful clinical outcomes. It achieves this thanks to its 8K (7680 x 4320 px) screen resolution, 29 micron XY accuracy and 8x anti-aliasing. It can print at layer heights of 0.01mm-0.1mm ensuring minimal stepping artifacts on prints.
User Friendly and Robust
Thanks to its 5-inch color touch screen the PioNext DJ89 PLUS boasts a user-friendly interface, streamlining the printing process and allowing dental practitioners to focus their attention where it matters most – on patient care. Additionally, the PioNext DJ89 PLUS features both auto-leveling and auto-feeding, to facilitate a hassle-free printing experience.
The printer’s robust build quality ensures long-term reliability, minimizing downtime and maximizing productivity in dental laboratories and practices. Its durable construction and efficient workflow management make it a valuable asset for any dental facility striving for excellence in patient care. Thanks to its double linear guide and ball screw motion hardware, the rigid structure ensures not only high accuracy in prints, but means the accuracy is consistent time and time again.
Light source technology
Unlike typical parallel light source technology, this innovative advancement achieves a higher level of light uniformity. Traditional parallel light sources project lamp bead light directly onto the LCD screen.
However, this approach often causes repeated block illumination, leading to higher light intensity in specific areas intensified by superposition.Repurposing this drawback, the integrated light features of DJ89PLUS ensures that each light bead evenly illuminates the LCD screen, following the principle of refraction.
Light Uniformity
Combining the benefits of DLP and LCD technology, the PioNext DJ89 PLUS does not suffer from the downsides associated with parallel emission light sources, such as insufficient light uniformity and frequent replacement of light sources.
With its integrated light source technology the PioNext DJ89 PLUS achieves light uniformity up to 95%, and has a lightsource lifespan of 2000 hours, making it a highly cost-effective solution.
Material Compatibility

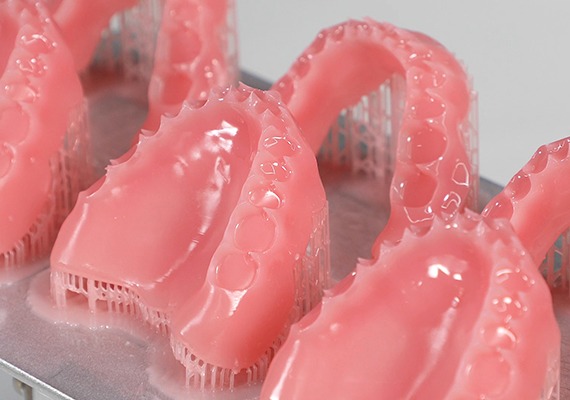

Another notable advantage of the PioNext DJ89 PLUS is its versatility in material compatibility. It uses 405nm resins to ensure maximum compatibility. With a wide range of biocompatible resins available, dental professionals have the flexibility to choose the most suitable material for their applications, whether it be for surgical guides, Gingiva masks, orthodontic models, and more.
