3D printing is transforming jewelry making, allowing jewelers to craft intricate designs faster, more accurately, and more efficiently than ever before. At the core of this shift is resin 3D printing, which accelerates the investment casting process by eliminating many of the manual steps in mold-making. By combining advanced 3D printing technology with traditional casting techniques, jewelers can now experiment with intricate designs, produce multiple iterations, and quickly respond to customer feedback, all while maintaining the highest standards of craftsmanship.
In this article, we’ll explore how 3D printing is used in jewelry casting, provide a step-by-step guide to the process, and highlight the key benefits of resin 3D printing in jewelry production.
The Basics of Investment Casting in Jewelry
Investment casting is the most popular method for 3D printing jewelry. Also known as lost wax casting, it combines modern 3D printing technology with traditional casting techniques to streamline jewelry production.
The process begins with a jeweler using computer-aided design (CAD) software to create a digital model of a jewelry piece. This digital model is then converted into a 3D printed model, typically made from wax or castable resin. Printing the castable model in resin can be accomplished through either stereolithography (SLA) or digital light processing (DLP). The castable model is then used in the traditional lost wax casting process, where the model is encased in a mold material, such as a plaster-like medium, that hardens around it. When heated, the wax or resin model melts away, leaving a cavity in the shape of the original piece. Molten precious metal is then poured into this cavity, creating a final piece with intricate details and high precision.
This combination of digital and traditional techniques allows jewelers to produce complex designs that would be difficult or even impossible to create by hand, expanding the possibilities of jewelry design.
3D Printing Jewelry: Step-by-Step Workflow
Resin 3D printers enable jewelers to adopt a four-step workflow for jewelry making, helping to simplify production while achieving high levels of precision.
Step 1: Prototyping
The first step in the 3D printing jewelry process is prototyping. Jewelers can quickly create multiple iterations of a design using standard resin, allowing them to test different variations and experiment with form and fit before committing to a final design. This step is especially useful for verifying the aesthetics and functionality of a piece.
Step 2: Fitting
Once a prototype is created, it is often used for a fitting session with the customer. A 3D printed prototype gives customers a tangible preview of the final product, allowing them to provide feedback on size, shape, and style. Adjustments can be made in the digital model based on customer input, ensuring that the final piece meets their expectations before the casting process begins.

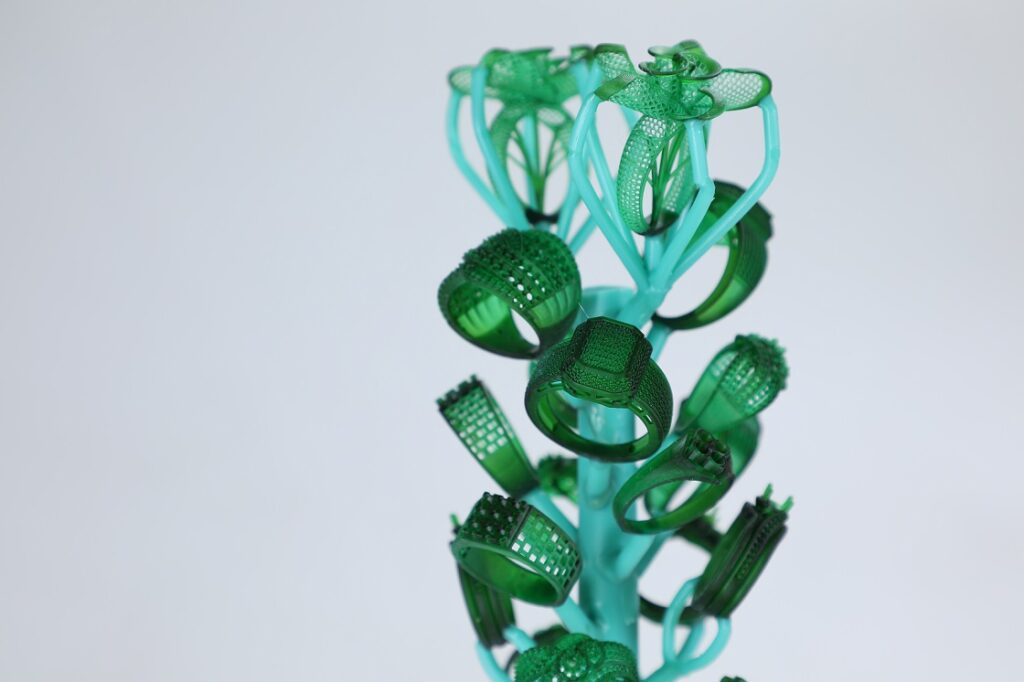

Step 3: Investment Pattern
After finalizing the design, jewelers create an investment pattern by printing the piece in castable resin. Castable resins are specially formulated for jewelry casting, allowing the resin to burn out cleanly during the investment casting process, leaving no ash residue in the mold. This resin provides a smooth surface finish and captures the finest details, essential for producing high-quality jewelry.

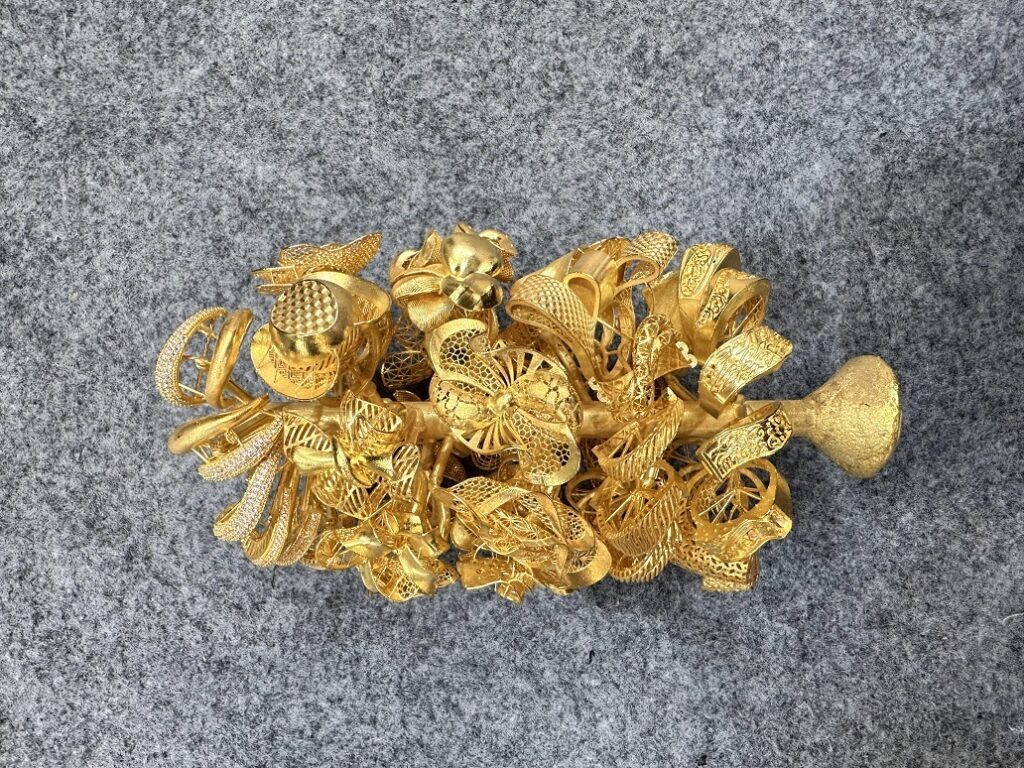

Step 4: Casting
The castable resin model is used to make a mold in the investment casting process. Once the mold hardens, it is heated to melt and remove the resin, leaving a cavity in the shape of the jewelry piece. Molten metal is then poured into this cavity to create a cast of the jewelry. After cooling, the mold is broken away, and the jewelry piece is polished and finished for a smooth, professional look.
Key Benefits of 3D Printing for Jewelry Casting
3D printing offers several unique advantages in jewelry casting, allowing jewelers to produce intricate designs faster and with greater precision.
1. Increased Manufacturing Scalability
3D printing makes it easier to scale up production, as jewelers can print multiple models simultaneously. This efficiency reduces the time and labor costs associated with creating individual wax or resin models by hand, making it easier to fulfill larger orders without compromising quality.
2. Unleashed Design Freedom
3D printing unlocks design freedom that was previously limited by traditional casting methods. Complex patterns, interlocking parts, and fine filigree work can be designed in CAD software and printed with high precision, enabling jewelers to explore intricate designs without the limitations of manual production.
3. Ease-of-Use in an Industrial Solution
Modern resin 3D printers, such as Piocreat’s DJ89 PLUS and D158, are easy to operate and maintain, making them accessible to both small studios and large production facilities. With features like automatic feeding, heating chambers, and high-speed release films, these printers simplify the workflow, allowing jewelers to focus on design and production rather than technical troubleshooting.
Jewelry 3D Printers and Materials
Piocreat offers a range of resin 3D printers and materials tailored to the needs of jewelers. With high resolution and precision, Piocreat printers enable the production of intricate jewelry designs with professional-quality finishes.
DJ89 PLUS: High-Resolution LCD Printer for Jewelry
The DJ89 PLUS is an 8K 10.3″ LCD 3D printer designed for high-detail work. With a 29μm pixel size, it produces parts with unmatched clarity, making it ideal for jewelry pieces that require fine detail. Its heating chamber maintains a stable printing environment, and the automatic feeding feature streamlines the printing process, ensuring consistent results.
- Resolution: 29μm Pixel Size
- Features: Heating Chamber, Automatic Feeding, Stable Z-axis Structure
D158: Compact DLP Printer with Texas Instruments Technology
The D158 is a compact DLP 3D printer featuring Texas Instruments technology for superior precision and reliability. With a 62μm pixel size and high-speed release film, the D158 is ideal for jewelers looking for accuracy and speed in a compact design.
- Resolution: 62μm Pixel Size
- Features: Automatic Lifting Cover, High-Speed Release Film, Stable Z-axis Structure

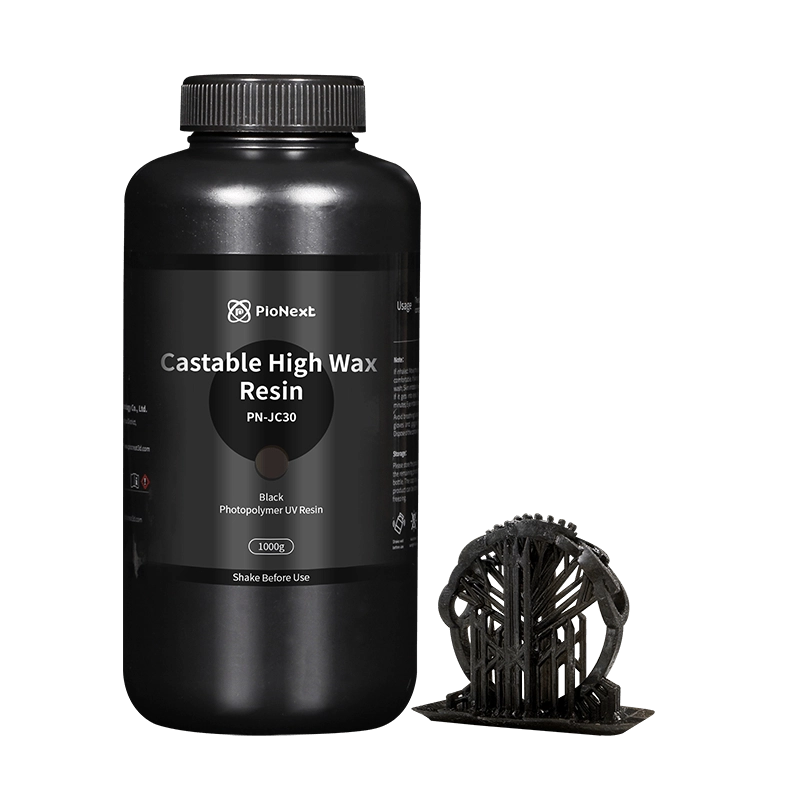

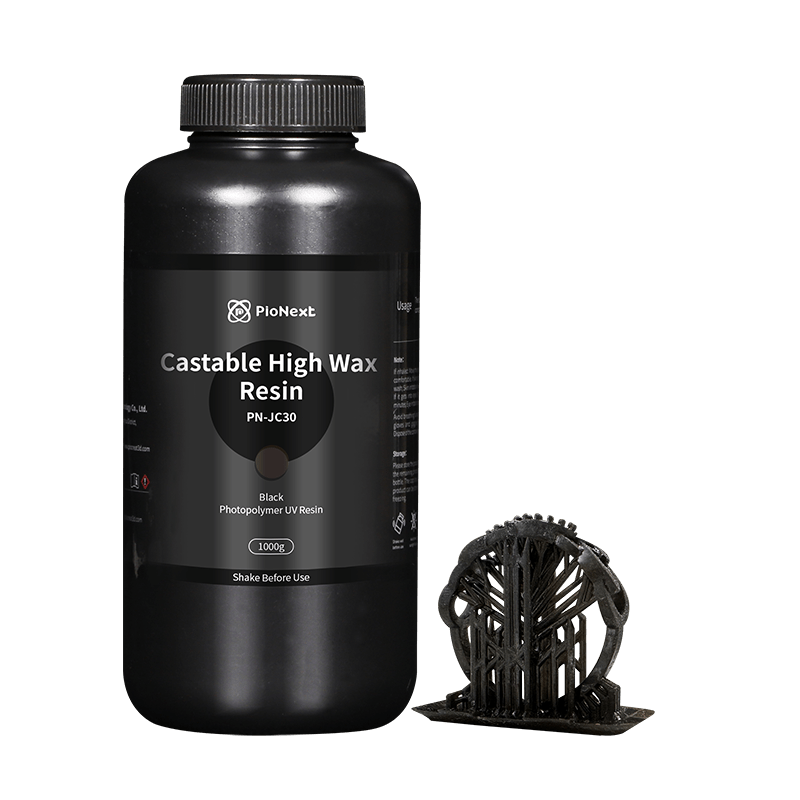

Best Resin for Jewelry 3D Printing
When it comes to casting jewelry, Castable High Wax Resin is a preferred material. This resin, composed of 30% wax, is specifically designed for clean burnout in the investment casting process. It captures intricate details and ensures smooth surfaces, resulting in a professional finish. Its low shrinkage rate further enhances precision, making it ideal for detailed jewelry designs.
Key Features of Castable High Wax Resin:
- High Wax Content: 30% Wax for flawless casting
- Clean Burnout: Zero ash content ensures clean removal from the mold
- Precision: High resolution and low shrinkage for detailed parts
Rubber Molds for Production Casting
In addition to direct 3D printing, jewelers can use 3D printed master patterns to create rubber molds for mass production. These rubber molds enable jewelers to create wax duplicates in large quantities, simplifying the production process for popular designs. Standard Resins are ideal for cold molding (RTV), while High Temp Resin can withstand the heat of vulcanizing natural rubber, making it suitable for high-quantity production casting.
